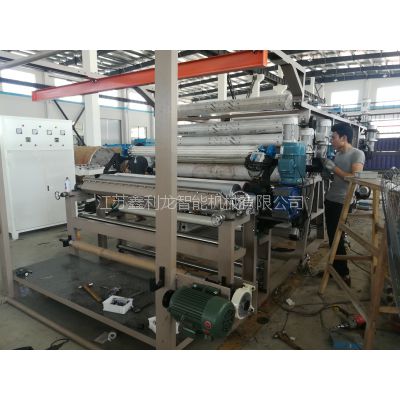

胶点转移复合机

组成部分：该机械是由放卷、上胶、烘箱、电加热复合、切边、远红外线、自动对边、牵引、收卷。

用途：用于纺织品、无纺制品、针织面料、呢料、纺织面料等。

特性：采用胶点转移技术，将胶水均匀地转移到里布上，或薄膜上，然后与面布进行复合，复合的面料具有防水透湿功能。

变频器：台湾变频器、电动功率3kw、复合辊筒是台湾变频器5.5kw、电加热或油加热复合辊筒，一般都是用电加热（油加热市场很少）。

复合辊筒：一般长度1.85米，直径1.2米，1.5米的长是1.85米用于服装面料，尺寸一般都可以，一般性的服装细料都在1.6米以下，通常复合辊都要比面料宽于布料10公分左右，其它面料可能宽度大于2米以上，如装饰材料、床上用品、地毯等面料都是1.8-2.6米宽度，因此面料宽上胶辊就宽，复合也宽。

直径是1.2米加热辊，加热管24根，每根1.5kw，共36kw，分3组装置，每组12kw，也就是说用户可以用36kw，3组全部打开只需要15分钟，复合辊筒温度150℃-180℃之间就可以复合布料，防水透气膜复合温度在150℃左右，如果用户电不能使用36kw，那就打开1组，根据用户电的情况来定，只要是直径1.2米，长1.8-3米之间，电热管数量都是24根36kw。

直径是1.5米复合辊筒，加热管30支，每支15kw，共45kw，同样的辊筒长度1.8-2.6米之间，电热管数量功率都不变。

复合滚筒壁厚1.2毫米，表面涂上美国度邦公司的特氟龙，特氟龙保护复合布料，同时防止胶水，需要到上面轻轻一擦就干净，辊筒上配有4根橡胶辊、气缸调节，自动分离。

在放料架上有对边器，后进上胶辊，上胶辊直径为240毫米

Part of the glue transfer complex machine: the machine is made up of unwinding, gluing, drying oven, electric heating compound, trimming, far-infrared ray, automatic side to side, traction and winding. Usage: used for textiles, non-woven products, knitted fabric, woolen textile fabrics, etc.. Characteristics: the technology of glue dot transfer glue evenly transferred to the cloth, or the film, and then combined with the surface cloth composite fabric has the function of waterproof and moisture permeable. Frequency converter: Taiwan inverter, electric power 3kw and compound roller are Taiwan frequency converter 5.5kW, electric heating or oil heating composite rollers, which are usually heated by electricity (oil heating market is very few). Composite roller: length 1.85 meters, 1.2 meters in diameter, 1.5 meters long, 1.85 meters is used for apparel fabrics, clothing size can generally be fine of 1.6 meters in the following, usually composite roll than fabric cloth about 10 centimeters wide, other fabrics may width greater than 2 meters, such as decoration materials, bedding, carpets and other fabrics are 1.8-2.6 meters wide width, so the fabric on rollers is wide, the composite is also wide. The diameter is 1.2 meters of heating roller, heating pipe 24, each 1.5KW, 36kw were divided into 3 groups, each group of 12KW devices, that is to say, the user can use the 36kw, the 3 groups all open only 15 minutes, between the composite roller temperature of 150 DEG -180 DEG can composite fabric, waterproof breathable membrane temperature in 150 DEG C, if the user cannot use electric 36kw, then open the 1 groups, according to the user the power to decide, as long as the diameter of 1.2 meters long, 1.8-3 meters, electric heating tube number is 24 36kw. The diameter is 1.5 meters compound roller, heating pipe 30, each 15kw, a total of 45KW, the same roller length between 1.8-2.6 meters, electric heat pipe quantity and power are the same. Composite cylinder wall thickness of 1.2 mm, coated on the surface of the state&＃39;s Teflon composite cloth, Teflon protection, and prevent the glue, need to gently rub on the above clean roller is equipped with 4 root rubber roller, cylinder adjustment, automatic separation. There is a side, back top roller, and the diameter of the top roller is 240 mm.
